Tiger adjustable trolleys
These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.
APT - Adjustable Plain/Push Trolley
- Range from 1.0t to 10.0t
- The anti-drop plates design ensures extra safety and also prevent damage to wheels when contacting end rail stoppers
- The 5:1 factor of safety allows for use with manual or powered hoists
- Fitted with a screw spindle which allows lockable adjustment to the various flange sizes within its capacity
- Wheels run on sealed bearings for smoother rolling with less effort and maintenance
- Designed to provide smooth and easy traversing
- Operating temperature of -30°C to +50°C (temperature range of -50°C to +50°C available as an option)
|
PRODUCT CODE
|
CAPACITY (TONNE) |
TRACK WIDTH RANGE A (MM) |

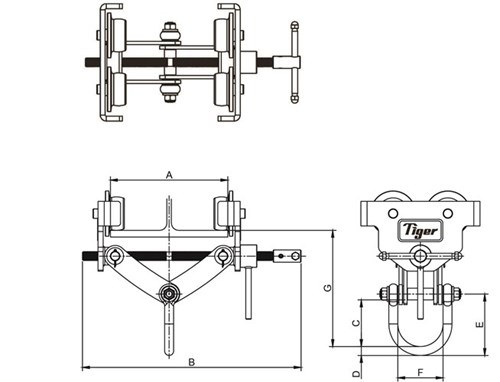

DIMENSIONS (MM) |
MIN. CURVE RATIO (M) |
NET WEIGHT (KG) |
| B |
C |
D |
E |
F |
G |
| APT-0100 |
1 |
75-210 |
391 |
83 |
16 |
110 |
81 |
255-208 |
1 |
9.5 |
| APT-0200 |
2 |
75-210 |
391 |
94 |
18 |
123 |
89 |
276-227 |
1.3 |
13.5 |
| APT-0300 |
3 |
75-210 |
403 |
105 |
22 |
141 |
112 |
288-241 |
1.5 |
23 |
| APT-0600 |
6 |
105-305 |
521 |
111 |
27 |
151 |
125 |
358-290 |
1.5 |
35.5 |
| APT-1000 |
10 |
160-305 |
606 |
119 |
32 |
170 |
83 |
400-340 |
2.7 |
118 |
